Horizontal Machining Center

NHR10D

NHR-Series

The NHR-Series adopts an advanced T-shaped bed structure, gantry-style column, and front-mounted box layout, providing strong rigidity and high precision retention, suitable for both rough and fine machining of precision-grade box components. Fit for automotive, rail transportation, aviation, valves, mining machinery, textile machinery, plastic machinery, shipbuilding, and power industries. Optional W-axis (535 mm stroke, 130 mm diameter) is available.

Work Range
X/Y/Z
1800/1500/1350 mm
Rapid Traverse Speed X/Y/Z
24/20/24 m/min
Spindle
Speed
8000 rpm
Spindle
Power
22/26 kW
Spindle
Torque
837/989 Nm
H
Highlights

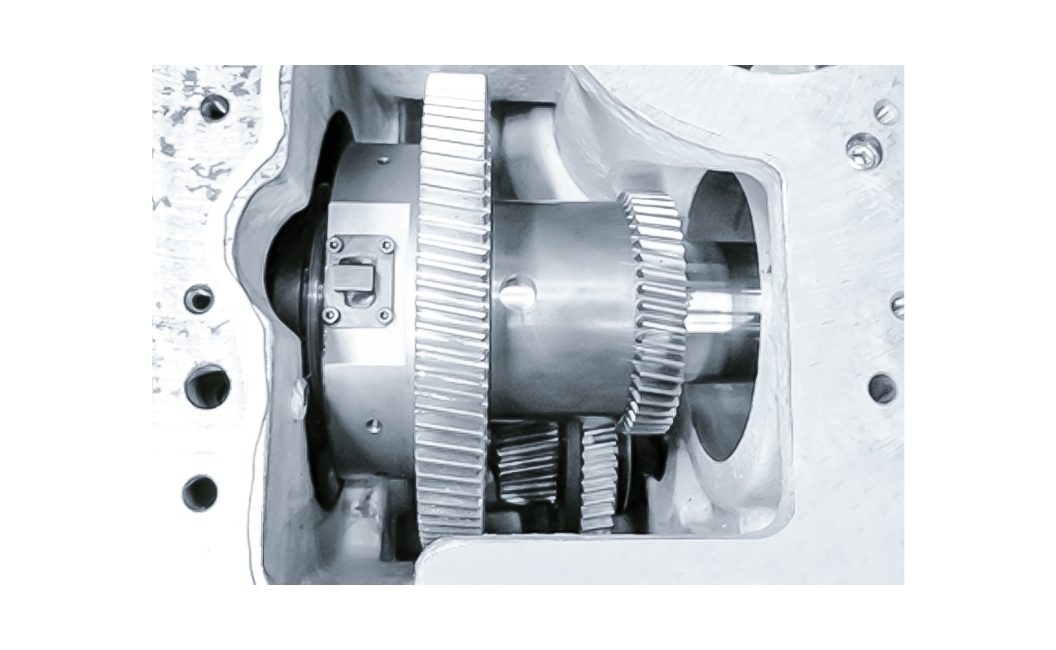

Powerful Main Drive

The spindle box features a two-stage gear transmission for high torque at low speeds, with robust bearings to meet heavy cutting demands.

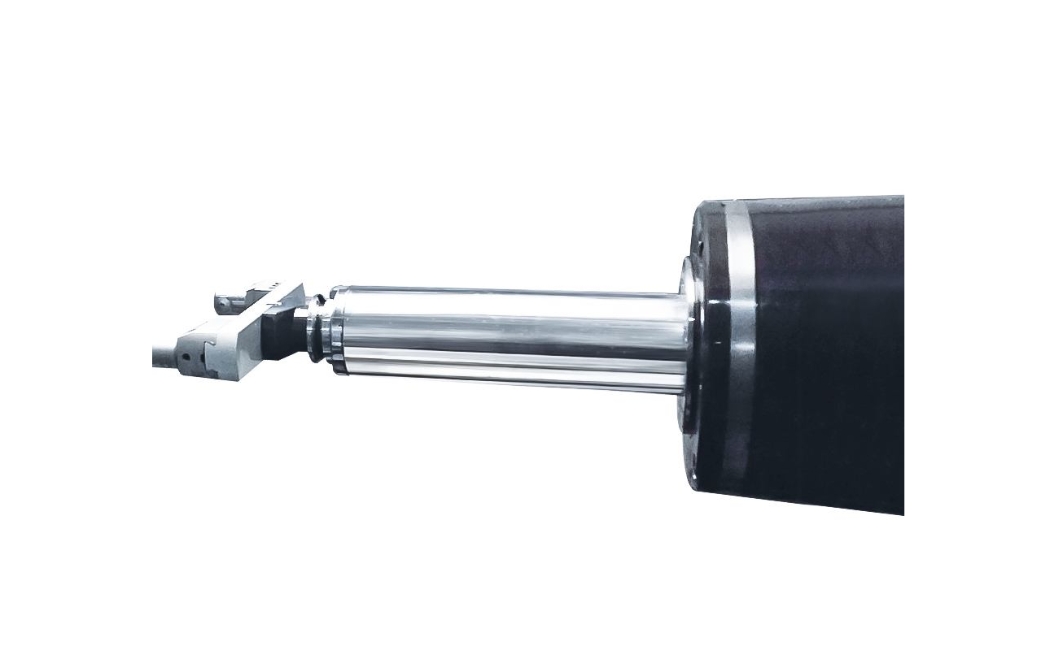

W-axis Function

535mm travel, 130mm diameter W-axis guided by precision linear rails, driven by a ball screw connected to a servo motor.

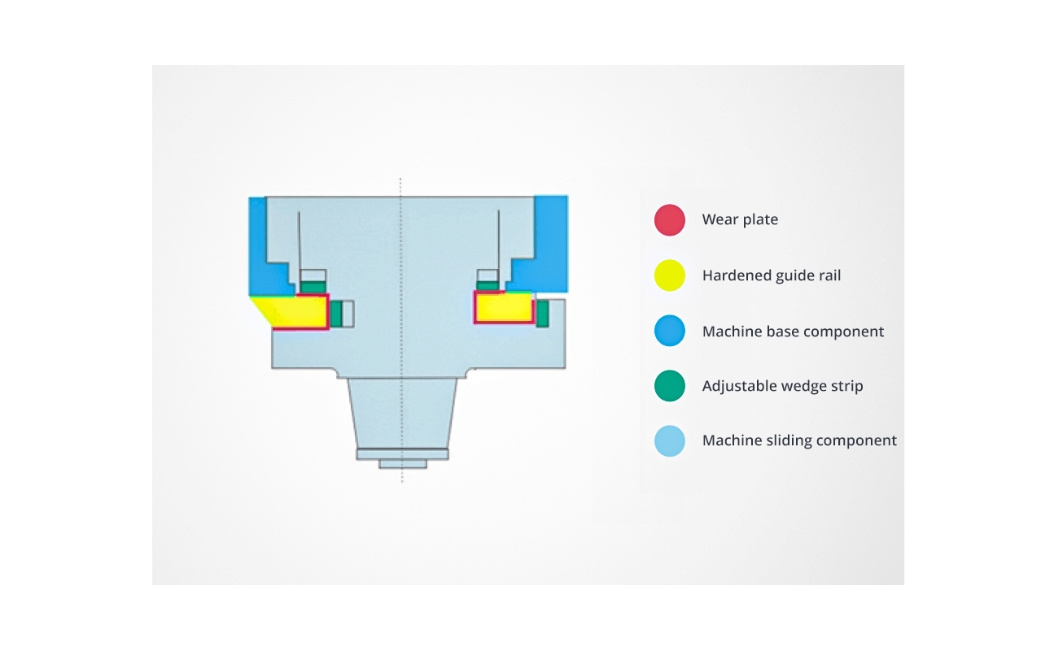

Y-axis Guideway Structure

Hardened, ground guideways with large cross-section ensure rigidity and symmetrical thermal deformation with seven contact surfaces.

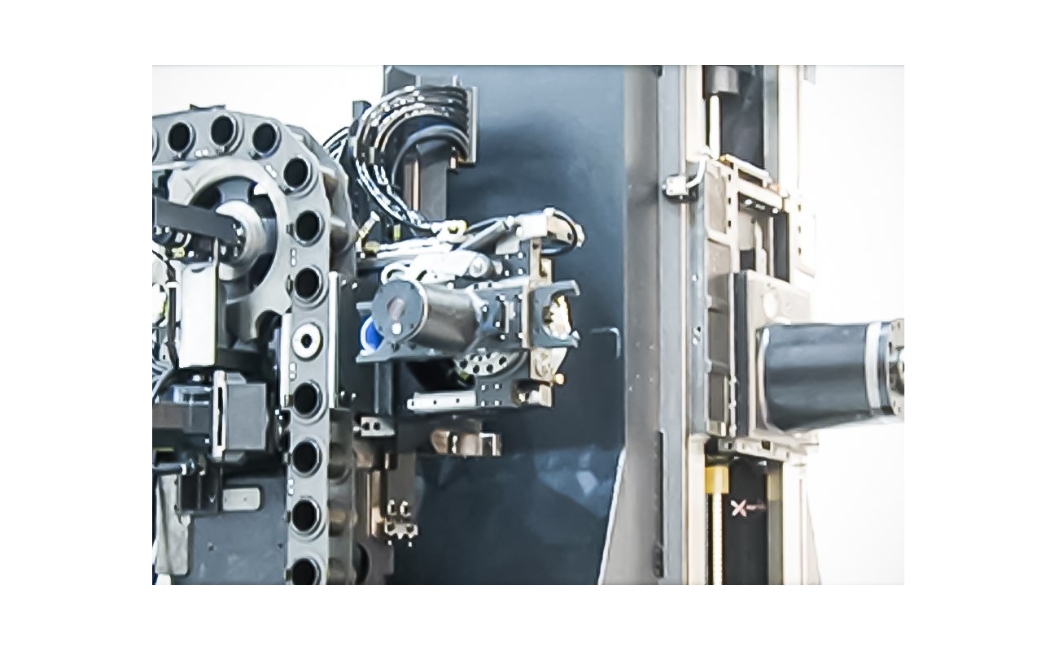

Robotic Tool Magazine

In-house tool magazine with a robotic arm based on Japanese tech, ensuring stable, reliable performance.

Diverse Chip Removal

Multiple chip removal methods are available, ensuring efficient operation and meeting various customer needs for different materials and machining processes, enhancing overall productivity.
